Basic Aircraft

• Standard aircraft with passengers cabin sliding doors, equipped with P&W206C engines, as per “Annex A of Enclosure 1”.
• Standard modifications for 3000 Kgs. Maximum Take Off Weight1 modifications.

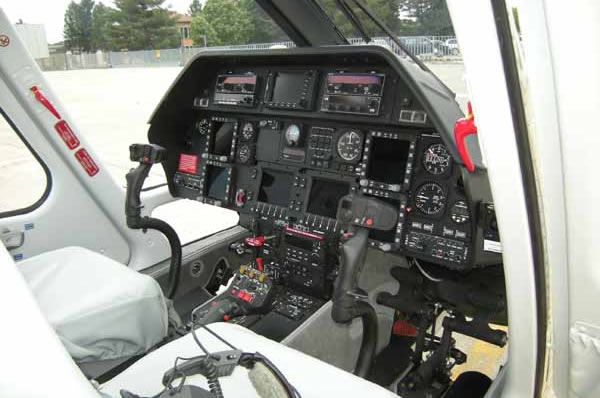

IFR Avionic Package (King Silver Crown Line)

• AC system (2 inverters)
• Pilot navigation instruments including
• LCD EADI & EHSI
• Stand-by ADI
• Gyrocompass C14 A Honeywell
• Vertical gyro (N.1) 46060-11 Flightline system
• Vertical gyro (N.2) VG 208 JET Electronics
• AFCS 3 Axis Duplex SP 711 Honeywell
• ADF KR 87 King
• Transponder (Mode S) KT 70 King
• VHF-COM/NAV KX 165 King (2)
• ICS Pilot / Co-pilot AG-06-1U Agusta/Gemelli
• DME KDM 706A King
• Marker Beacon KMR 675 King 1
• Not available on Turbomeca Arrius equipped helicopter

Additional Auxiliary Equipment

• Airframe hour meter
• Baggage compartment extensions (1.9 m)
• VLE & VLO extension up to 140 KIAS
• Dual control
• Rotor brake
• Retractable landing light
• Windshield wipers (Pilot/Copilot) with wiper switch on cyclic grip
• Engine compartment fire extinguishers
• Radio master switch with ground function

Painting

• Agusta colour scheme from Agusta paint selection solid colour series 300

Airframe

• Aluminium alloy and bonded panel fuselage
• Semimonocoque aluminium alloy tail boom
• Two hinged jettisonable crew doors (LH & RH)
• Two passenger sliding doors (LH & RH) with jettisonable window
• Acrylic windshield and side windows
• Acrylic overhead windows
• Removable fibreglass tail rotor gearbox fairing
• Quick removable tail rotor drive shaft cover
• Three wheel retractable landing gear
• Interchangeable landing gear tires
• Separate baggage compartment with hinged door
• Three jacking points
• Removable fairing and cowlings providing complete accessibility to the controls and drive components
• Swivelling front wheel provided with tow bar attachment
• Quick opening hinged inspection doors to allow visual check of engine oil levels and maintenance inspection points
• Grounding points

Exterior finishing

• Finishing in accordance with manufacturer specification NTA 893 A
• Primer exterior painting

Transmission drive system

• 900 SHP for take off and continuous operation main transmission
• Two stage transmission
• Two free wheeling units
• Two transmission mounted hydraulic pumps with separate reservoir
• Internal dry sump transmission lubrication with pressure and scavenge pump, and oil filter
• Transmission oil chip detectors (2)
• Single stage, bevel gear T/R 90° gear box including oil level sight glass and chip detector
• Transmission cooling and lubrication system
• Transmission shafts (engines to transmission, transmission to tail rotor, engines to blowers)

Electrical

• 24 volt DC nickel cadmium battery with temperature probe
• 160 Ampere self cooled starter generators (2)
• Voltage regulators (2)
• Battery relay
• Interconnecting bus relay (2)
• External power relay
• Distribution buses (1 battery, 2 essential, 2 main)
• External power receptacle
• Position lights
• Anti collision lights (2)
• Taxing lights (2) and landing lights (2) on landing gear sponsons
• Utility cockpit lights (2)
• Instrument lights with dimming switch
• Radio master switch

Caution & Warning advisory

• Master warning lights
• Master caution lights
• Warning, caution & advisory messages (on IDS displays)
• Engine fire detection system
• Aural Warning Generator system

Navigation instrument – pilot

• Magnetic compass indicator

Equipamentos Opcionais Instalados

• 8 Bose series X headsets
• Baggage Comp. Extension (2.3m)
• WX Radar RD 2000
• TAS SKY 497 BF Goodrich
• 221 gal. aux. fuel tank
• Pulsed chip detector
• Reinforced windshield
• Metallic Color Series 500 (in lieu solid colours)
• Customised Paint Scheme 2-3 colours
• Super Silent Sound Proofing (old Paulstra Sound Proofing)
• RH Electrically Operated Passenger Step
